    Double Coated Pre Painted Galvanized Coils 0.4mm ISO9001: 2008

    Ask Lasest Price
    Brand Name : JERO STEEL
    Model Number : JS66
    Certification : SONCAP SABER ISO9001: 2008
    Price : US$650-720 Per Ton
    Payment Terms : Western Union, MoneyGram, L/C, T/T, D/P, MoneyGram
    Supply Ability : 9000 tons per month
    Delivery Time : 10-25 working days
    • Product Details
    • Company Profile

    Double Coated Pre Painted Galvanized Coils 0.4mm ISO9001: 2008

    0.4mm PPGI In Steel Coils Metal Roll Paint Double Coated PPGI Coil


    What is pre-painted galvanized steel?


    Prepainted galvanized steel coil is a kind of colour coated steel coil (PPGI coil). It uses galvanized steel as the base metal. The zinc layer offers strong corrosion resistance. Plus with painting, it is more durable than galvanized steel.

    What is pre-painted galvanized steel?


    Prepainted galvanized steel coil is a kind of colour coated steel coil (PPGI coil). It uses galvanized steel as the base metal. The zinc layer offers strong corrosion resistance. Plus with painting, it is more durable than galvanized steel.


    Double Coated Pre Painted Galvanized Coils 0.4mm ISO9001: 2008


    Standard
    JIS G3322 CGLCC ASTM A755 CS-B
    Surface coating color
    RAL color
    Back side coating color
    Light grey ,white and so on
    Package
    standard package or as the request
    Type of coating process
    Front: double coated&double drying. Back: double coated&double drying, single-coated&double drying
    Type of substrate
    hot dipped galvanzied, galvalume, zinc alloy, cold rolled steel, aluminum
    Thickness
    0.12-2mm
    Width
    25-1250mm
    Coil Weight
    3-9 Tons
    Inner Diameter
    508mm
    Zinc Coating
    Z50-Z275G
    Painting
    Top: 15 to 25 um (5 um + 12-20 um) back: 7 +/- 2 um
    Coating introduction
    Top paint: PVDF, HDP, SMP, PE, PU
    Prime paint: Polyurethane, Epoxy, PE
    Back paint: Epoxy, Modified polyester
    Productivity
    120,000 Tons/year

    Meticulous operation and service is our company’s absolute advantage, every line must be kept in good order .


    Firstly, we guarantee the product quality by our inspection team, professional equipment, that is the key point for getting a stable and sustainable development.


    Secondly, we have strictly constraint for every step, such as production, package, inspection, delivery etc. We lower the risk to the bottom, avoid the loss which is from misoperation. Therefore, we can calculate and control the operating cost with a really stable and accurate data, that strengthens our price advantage.


    Thirdly, we have excellent sales team, each member have over 4 years steel material export experience, they can judge the market changes to a certain extent and provide some reasonable advice for customers.


    Double Coated Pre Painted Galvanized Coils 0.4mm ISO9001: 2008Double Coated Pre Painted Galvanized Coils 0.4mm ISO9001: 2008


    Applications of Prepainted steel coil

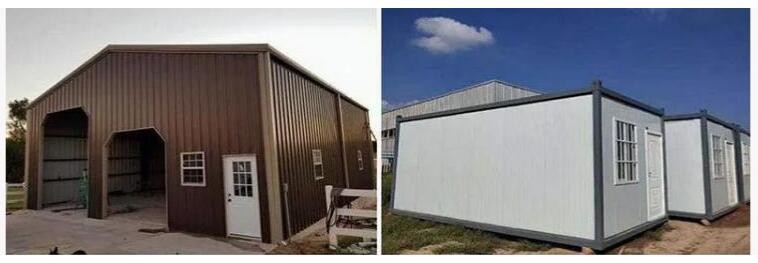

    1. Construction and building: roofing; ventilating duct; handrail; partition panel;etc.
    2. Electric appliance: refrigerator; washing machine; refrigerator; DVD;etc.
    3. Transportation: oil tank; road sign; etc.
    4. Agriculture:barn; etc.
    5. Others:vending machine; game machine; etc.


    Double Coated Pre Painted Galvanized Coils 0.4mm ISO9001: 2008


    Double Coated Pre Painted Galvanized Coils 0.4mm ISO9001: 2008


    Quality Control:


    Double Coated Pre Painted Galvanized Coils 0.4mm ISO9001: 2008

    Double Coated Pre Painted Galvanized Coils 0.4mm ISO9001: 2008

    The pre-painted galvanized steel coils are a product obtained by subjecting a hot-dipped galvanized steel sheet to a surface chemical treatment, applying organic coating on the surface, followed by baking and curing.


    PPGI steel coil is a popular material for roofing sheets, wall panels, furniture, home appliances, automobile uses, etc. It keeps the strength of galvanized steel. Meanwhile, the organic coating offers various colors and attractive appearance.


    FAQ:


    Q: Can you send samples?
    A: We can send samples to you, our samples are free, but customers need to bear the courier cost.

    Q: How long does your delivery time ?
    A: Generally, our delivery time is within 20 days.


    Q: How about the packages ?


    Normally, 3 layers water proof standard export package.


    Special packaging includes vertical packaging or customer request packaging. This packaging method can calculate the price according to the packaging cost. Vertical packaging is the roll core up and the bottom fixed on a wooden pallet. This packaging method maximizes the protection of the steel coil from external forces, but the packaging cost and labor cost are high.
